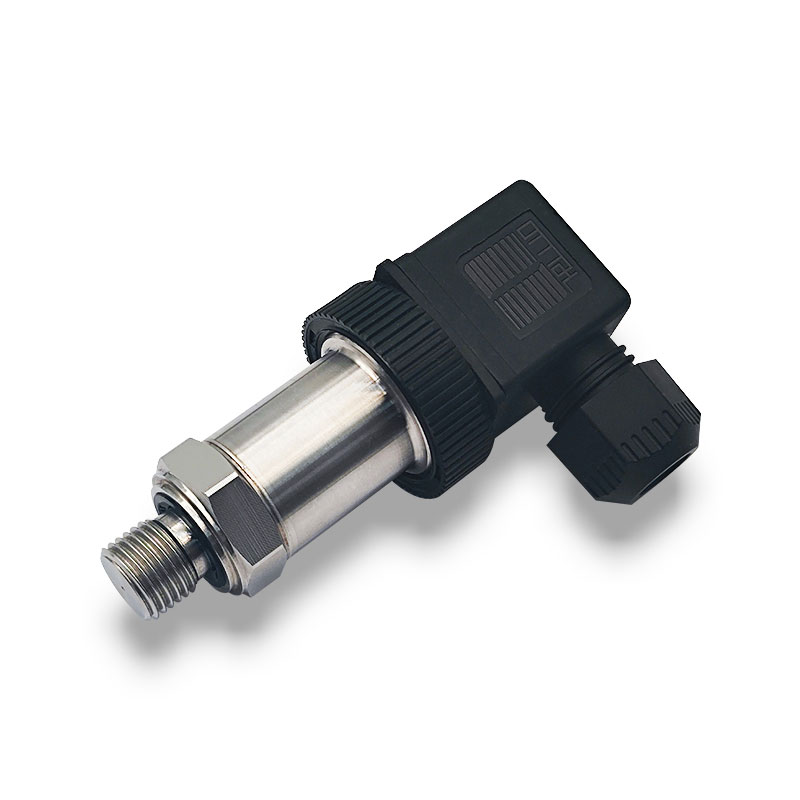

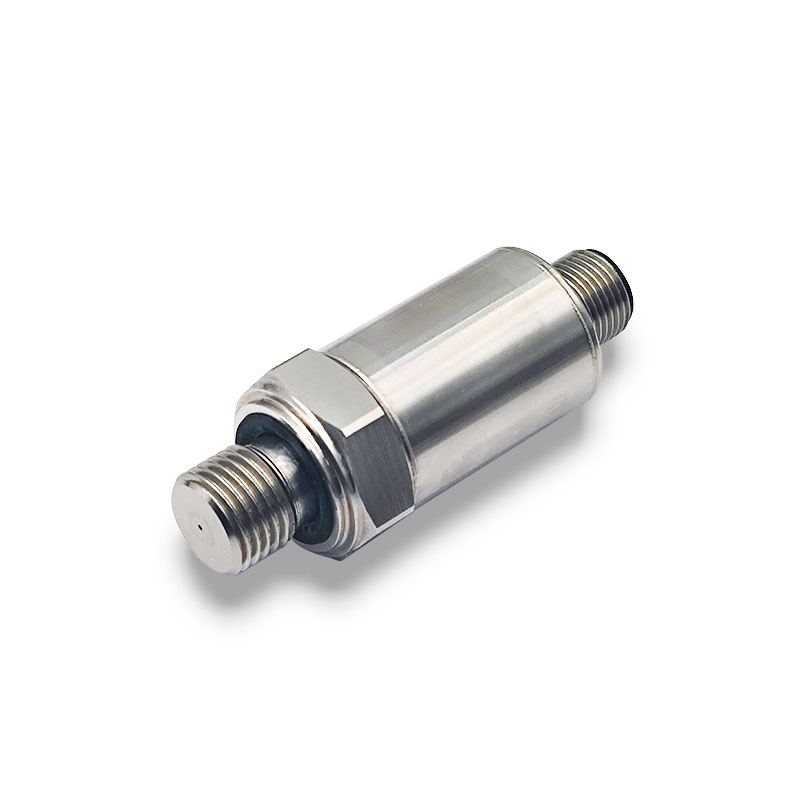

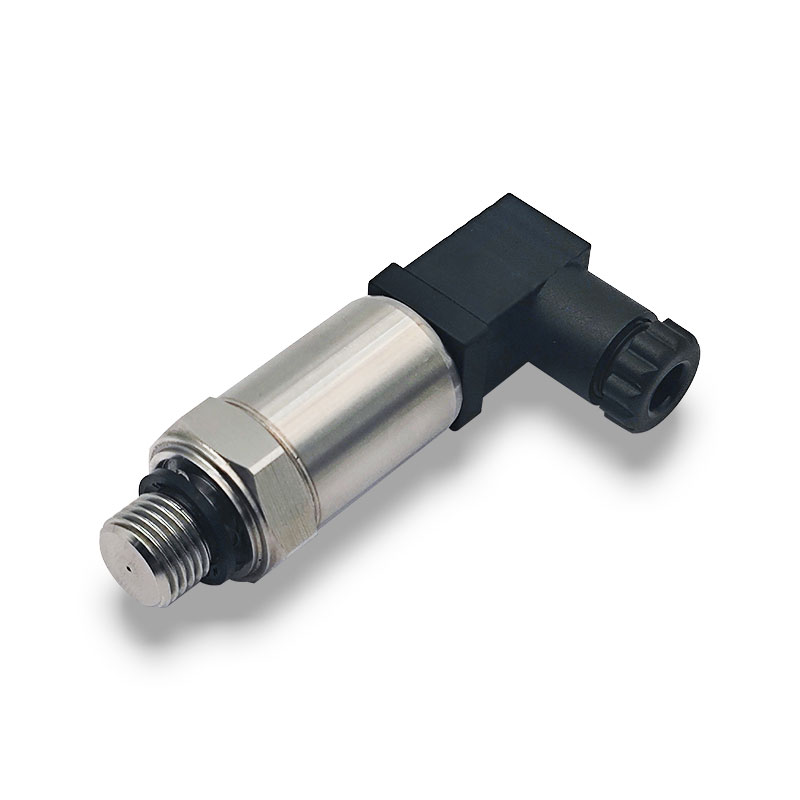

SDP-U5300 High-Accuracy Industrial Pressure Transmitter
The SDP-U5300 is a compact, rugged pressure transmitter designed for industrial pressure monitoring, precision test equipment and OEM machinery. Its one-piece pressure chamber and 316L stainless steel diaphragm provide a robust construction for demanding applications.
With typical accuracy of ±0.2% F.S. BFSL at 25°C, gauge and compound pressure options, and a choice of pressure connections and electrical outputs, the SDP-U5300 supports flexible integration into industrial systems. Optional damping, reverse-polarity protection and output short-circuit protection further enhance application flexibility and reliability.
Features
• Precision Measurement — Typical accuracy of ±0.2% F.S. BFSL at 25°C for demanding monitoring and testing applications.
• Rugged Construction — Compact design with a one-piece pressure chamber and 316L stainless steel diaphragm.
• Flexible Integration — Gauge and compound pressure options, multiple connection and output choices, and optional damping.
SDP-U5300 High-Accuracy Industrial Pressure Transmitter
1. Product Overview
The SDP-U5300 is a compact industrial pressure transmitter for precision monitoring and equipment integration. A one-piece pressure chamber and 316L stainless steel diaphragm provide a rugged mechanical design.
Gauge and compound pressure configurations, connection options and optional damping support different installation requirements.
2. Key Features
- Typical accuracy: ±0.2% F.S. BFSL at 25°C.
- Compact construction with an integral pressure chamber.
- Reverse-polarity and output short-circuit protection.
- Optional damping.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDP-U5300 |
| Pressure reference | Gauge / compound |
| Accuracy at 25°C | Typical: ±0.2% F.S. BFSL; limits: ±0.25% F.S. BFSL |
| Long-term stability | ±0.1% F.S. per year |
| Overload pressure | 2 × rated pressure |
| Burst pressure | 3 × rated pressure |
| Pressure cycle life | 10 million cycles, 0–full scale |
| Operating / storage temperature | −40°C to +125°C; cable limited to +105°C |
| Response time | Voltage: <2 ms; current: <3 ms (10–90%, without damping) |
| Diaphragm | 316L stainless steel |
| Insulation resistance | ≥100 MΩ at 100 VDC, signal to housing |
F.S. = Full Scale. BFSL = Best Fit Straight Line. Confirm configuration-specific ratings before ordering.
4. Typical Applications
- Industrial process monitoring and control
- Automotive test benches
- Calibration equipment
- Industrial machinery
5. Product Selection
To request a suitable SDP-U5300 configuration, please provide the following application requirements:
- Pressure range and pressure reference
- Required output signal and available power supply
- Process connection and electrical connection
- Measured medium and operating temperature
- Expected pressure peaks and damping requirements
- Sample quantity and estimated annual demand
Discuss Your Application with SensorDyna
Send us your operating conditions and installation requirements. We will help confirm the available configuration and prepare a quotation for your project.
