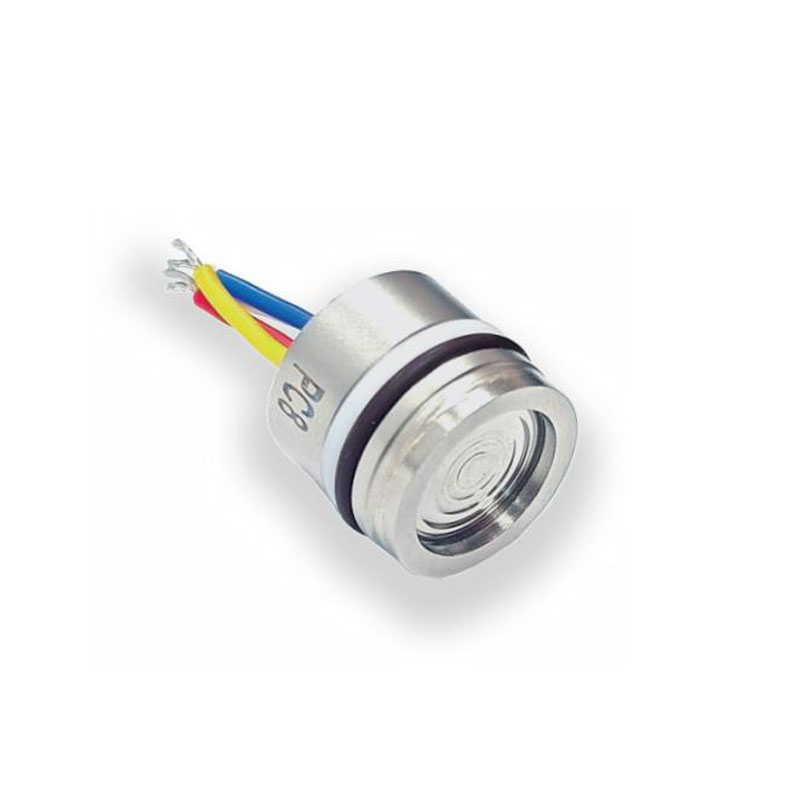

SDP-PC8 Compact Ø15 mm High-Pressure Piezoresistive Silicon Pressure Sensor Core
The SDP-PC8 is a compact piezoresistive silicon pressure sensor core designed for OEM pressure sensors and transmitters, with full-scale ranges up to 60 MPa. Its Ø15 × 13 mm package combines a 316L stainless-steel diaphragm and housing with silicone oil-filled construction for integration into space-constrained equipment.
Temperature compensation, millivolt output and constant-current or constant-voltage excitation options support flexible signal-conditioning designs. Pin or wire connections provide additional integration options for industrial pressure measurement using media compatible with 316L stainless steel and the seal material.
Features
• Compact Ø15 × 13 mm package for OEM integration
• Available pressure ranges from 0–1.6 MPa to 0–60 MPa
• 316L stainless-steel diaphragm and housing
• Temperature compensation from −10°C to +70°C
• Absolute and sealed gauge options, depending on range
• Recommended excitation: 1.5 mA constant current or 10 V constant voltage
• Millivolt output with pin or wire connections
• Typical non-linearity: ±0.2% FS (BFSL)
01Product Overview
The SDP-PC8 Compact Piezoresistive Silicon Pressure Sensor Core combines a Ø15 mm format with temperature compensation for OEM integration. A 316L stainless-steel isolation diaphragm and silicone oil filling transfer pressure to the sensing die while separating it from compatible process media.
02Product Features
- Compact Ø15 mm OEM format
- Moisture-protected compensation board
- Constant-current or constant-voltage excitation
- Millivolt output for signal-conditioning circuits

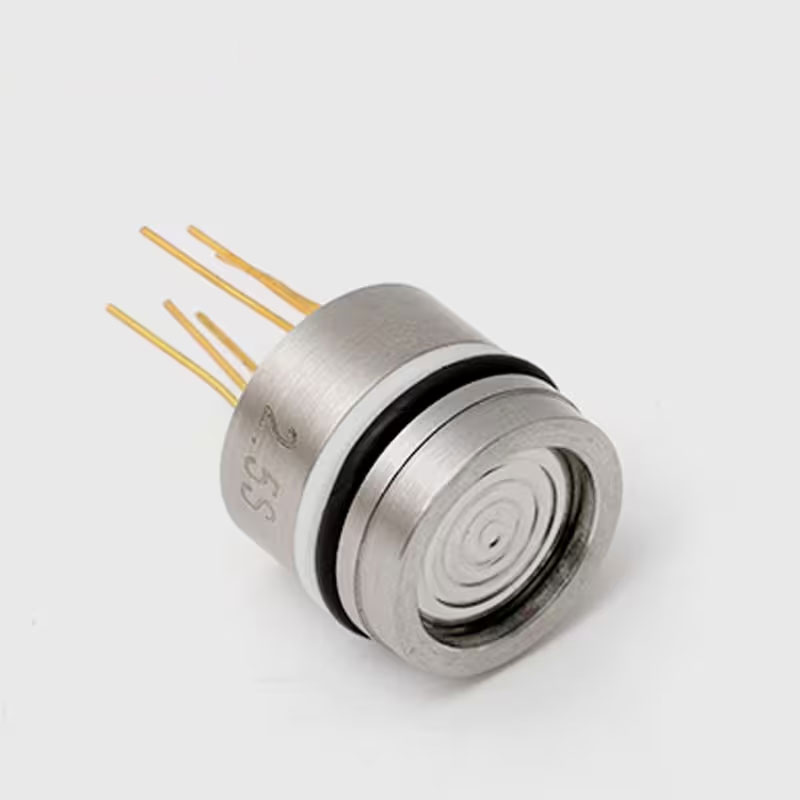

- Wire or gold-plated Kovar pin connections
03Applications
Process control, pressure calibration, hydraulics, HVAC, refrigeration and level measurement.
04Structural Characteristics
| Diaphragm / Housing | 316L stainless steel |
|---|---|
| Fill Fluid | Silicone oil |
| Mounting Seal | Fluoroelastomer (FKM) O-ring |
| Media Compatibility | Liquids and gases compatible with 316L and the seal |
05Environmental Conditions
| Compensated Temperature | −10 to +70°C |
|---|---|
| Operating Temperature | −40 to +125°C |
| Storage Temperature | −40 to +125°C |
| Vibration | 20 g, 20–5,000 Hz |
| Shock | 100 g, 10 ms |
06Electrical Characteristics
| Recommended Excitation | 1.5 mA constant current / 10 V constant voltage |
|---|---|
| Input Impedance | 2–5 kΩ (current excitation); 3–18 kΩ (voltage excitation) |
| Full-Scale Span at 1.5 mA | 60–150 mV; 90 mV typical |
| Full-Scale Span at 10 V | 98–102 mV; 100 mV typical |
| Zero Output | ±1 mV typical; ±2 mV maximum |
| Insulation Resistance | ≥200 MΩ at 250 VDC |
| Response Time | ≤1 ms to 90% FS |
07Technical Specifications
| Full-Scale Ranges | 1.6, 2.5, 4, 6, 10, 16, 25, 40 and 60 MPa |
|---|---|
| Absolute Pressure | 0–1.6 MPa and 0–2.5 MPa |
| Sealed Gauge Pressure | Available across all listed ranges |
| Non-Linearity | ±0.2% FS typical; ±0.3% FS maximum, BFSL |
| Hysteresis / Repeatability | Each: ±0.03% FS typical; ±0.05% FS maximum |
| Long-Term Stability | ±0.2% FS/year typical; ±0.3% FS/year maximum |
| Durability | 1 million pressure cycles |
FS = full scale; BFSL = best-fit straight line. Non-linearity is not combined accuracy. Pressure limits vary by range as listed below.
| Full-Scale Range | Overload / Burst |
|---|---|
| 1.6 / 2.5 MPa | 200% FS / 500% FS |
| 4 / 6 / 10 MPa | 200% FS / 400% FS |
| 16 MPa | 200% FS / 300% FS |
| 25 MPa | 150% FS / 300% FS |
| 40 / 60 MPa | 150% FS / 200% FS |
08Dimensions
Nominal package: Ø15 × 13 mm. Confirm the configuration-specific drawing before designing the mounting cavity, O-ring groove and electrical clearance.

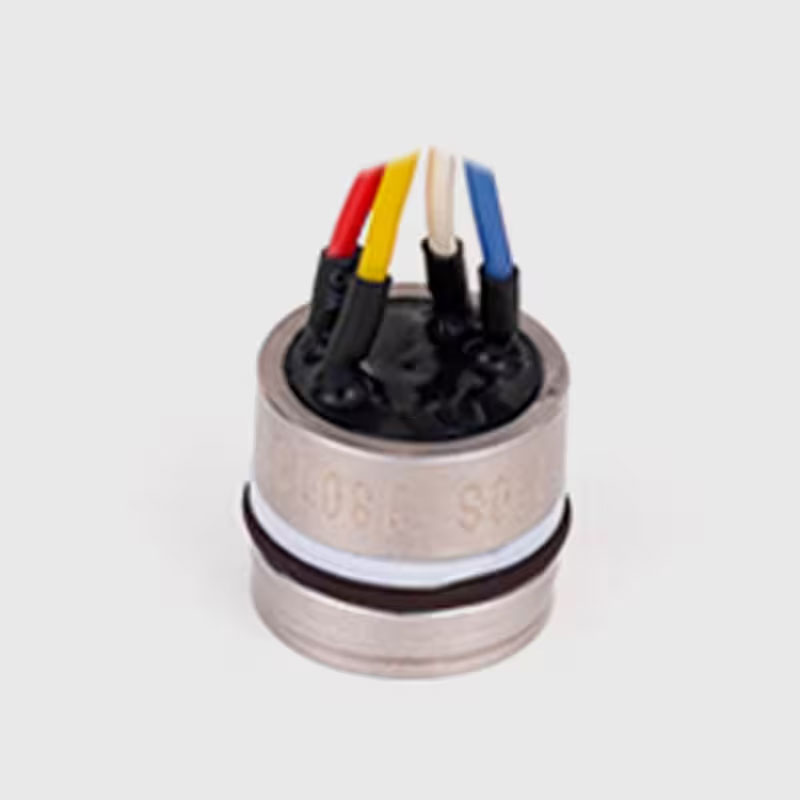

09Electrical Connection
| Red | Excitation + (IN+) |
|---|---|
| Blue | Excitation − (IN−) |
| Yellow | Output + (OUT+) |
| White | Output − (OUT−) |
Four-wire version only. For five-wire or six-pin versions, use the corresponding connection drawing. Confirm excitation and wiring before connection.
10Product Selection
For an SDP-PC8 quotation, specify the pressure range and reference, excitation, output span, electrical connection, measured medium, temperature, mounting requirements and quantity. Include normal operating pressure and expected pressure peaks.
Contact SensorDyna for configuration matching, sample availability and OEM integration support.
