SDP-PC10HV Shock-Resistant Piezoresistive Silicon Pressure Sensor Core

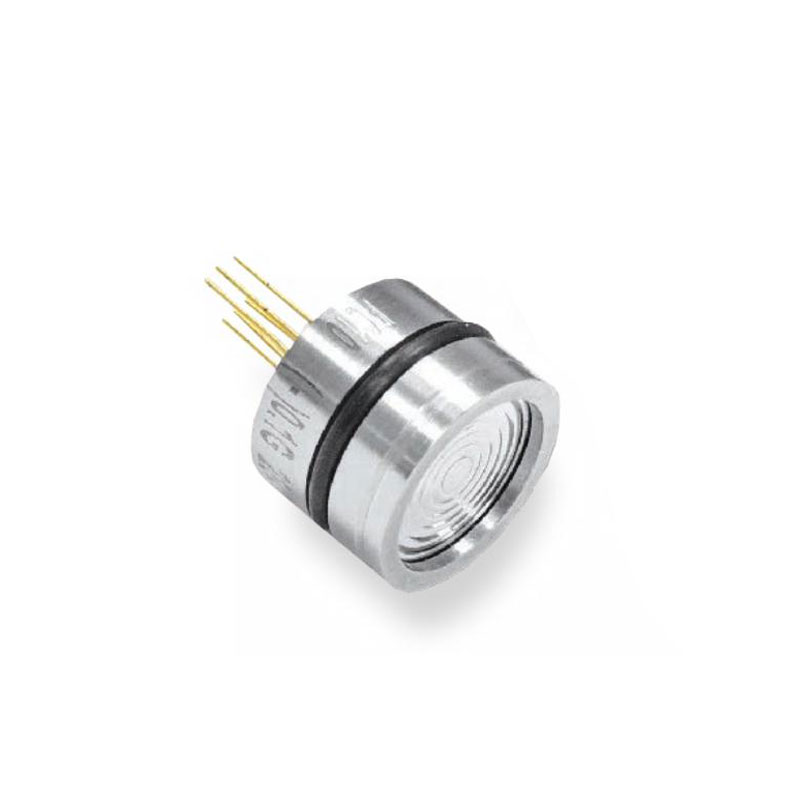

The SDP-PC10HV is a shock-resistant piezoresistive silicon pressure sensor core designed for integration into OEM pressure sensors and transmitters. Its 316L stainless-steel isolation diaphragm and silicone oil-filled construction protect the sensing die from direct contact with the measured medium.
With a standard Ø19 mm diameter, temperature compensation and millivolt output, the SDP-PC10HV supports compact sensor designs for hydraulic systems, industrial process control and HVAC equipment. It is suitable for liquids and gases compatible with 316L stainless steel.
Features
• Shock resistance: 100 g, 10 ms
• Vibration resistance: 20 g, 20–5,000 Hz
• Standard Ø19 mm diameter for OEM integration
• 316L stainless-steel diaphragm and housing
• Available pressure ranges from 0–20 kPa to 0–60 MPa
• Gauge, absolute and sealed gauge options, depending on range
• Recommended 1.5 mA constant-current excitation
• Millivolt output with temperature compensation
01Product Overview
The SDP-PC10HV is a shock-resistant, oil-filled piezoresistive silicon pressure sensor core for OEM integration. Its stainless-steel diaphragm isolates the sensing die from compatible liquids and gases.
02Product Features
- Standard Ø19 mm format
- 316L diaphragm and housing
- Temperature-compensated millivolt output
- Shock: 100 g, 10 ms
- Vibration: 20 g, 20–5,000 Hz
03Applications
Hydraulics, process control, HVAC, refrigeration, level measurement and pressure calibration.
04Structural Characteristics
| Fill Fluid | Silicone oil |
|---|---|
| Mounting Seal | O-ring; NBR or FKM, depending on range |
| Media | Liquids and gases compatible with 316L |
05Environmental Conditions
| Operating Temperature | −40 to +120°C |
|---|---|
| Storage Temperature | −40 to +125°C |
| Compensated Temperature | 0 to +60°C (≤70 kPa); −10 to +70°C (other ranges) |
06Electrical Characteristics
| Recommended Excitation | 1.5 mA constant current |
|---|---|
| Full-Scale Output | 60–150 mV; 90 mV typical at 1.5 mA |
| Input Impedance | 2–5 kΩ |
| Insulation Resistance | ≥200 MΩ at 250 VDC |
| Response Time | ≤1 ms to 90% FS |
Millivolt output requires signal conditioning for integration into a standard-output transmitter.
07Technical Specifications
| Pressure Ranges | 0–20 kPa to 0–60 MPa |
|---|---|
| Pressure Reference | Gauge / Absolute / Sealed gauge; range-dependent |
| Non-Linearity | ±0.2% FS typical; ±0.3% FS maximum, BFSL |
| Hysteresis / Repeatability | Each: ±0.03% FS typical; ±0.05% FS maximum |
| Long-Term Stability | ±0.2% FS/year typical; ±0.3% FS/year maximum |
FS = full scale; BFSL = best-fit straight line. Non-linearity is not a combined accuracy specification.
08Dimensions
Request the dimensional drawing for your selected range before designing the mounting cavity. Confirm the diaphragm clearance, O-ring groove and installation tolerances with SensorDyna.

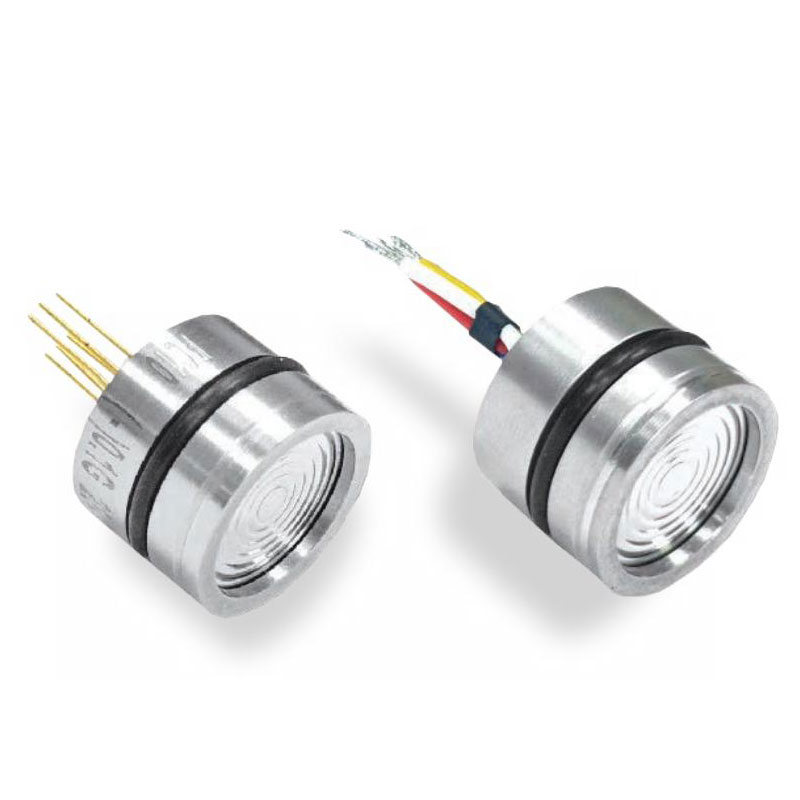

09Electrical Connection
| Red | Excitation + (IN+) |
|---|---|
| Blue | Excitation − (IN−) |
| Yellow | Output + (OUT+) |
| White | Output − (OUT−) |
Four-wire constant-current configuration. Confirm the supplied wiring specification before connection.
10Product Selection
For an SDP-PC10HV quotation, specify the pressure range and reference, measured medium, temperature, mounting dimensions, seal requirements and quantity. Include expected pressure peaks and any special compensation requirements.
Contact SensorDyna for configuration matching, sample availability and OEM integration support.
