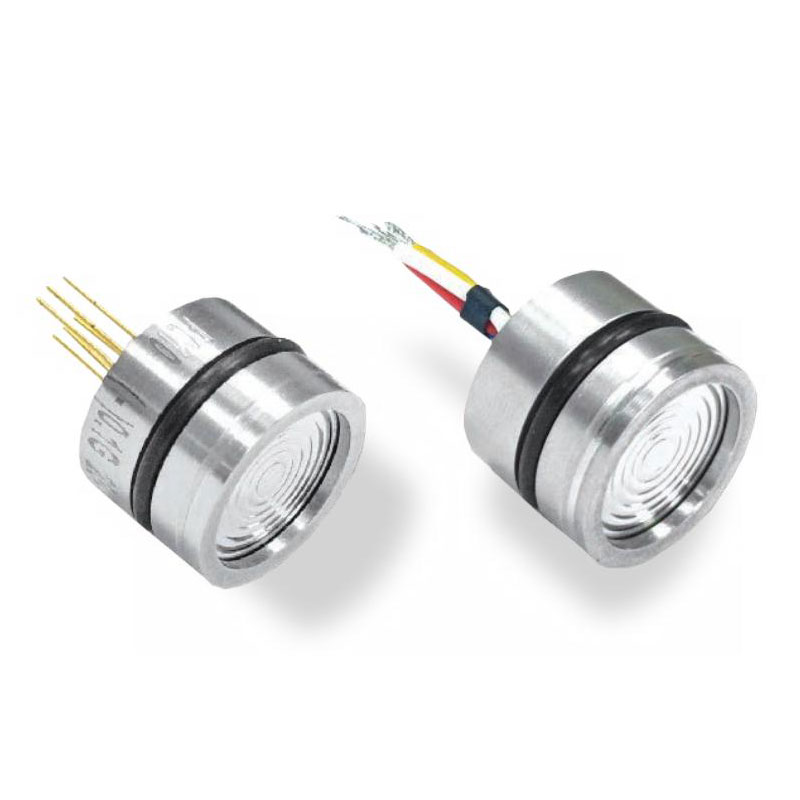

SDP-PC10HC Hastelloy C Piezoresistive Silicon Pressure Sensor Core
The SDP-PC10HC is a piezoresistive silicon pressure sensor core featuring a Hastelloy C header and diaphragm for corrosive media and harsh industrial environments. Its compact Ø19 × 14 mm design supports integration into OEM pressure sensors and transmitters, with available pressure ranges from 100 kPa to 60 MPa.
Designed for applications where media compatibility is critical, the SDP-PC10HC provides a corrosion-resistant sensing option for demanding pressure measurement tasks. Material compatibility should be confirmed for the specific medium, concentration and operating temperature.
Features
• Hastelloy C Construction — Header and diaphragm made from Hastelloy C for corrosion-resistant pressure sensing.
• Compact OEM Design — Ø19 × 14 mm sensor core for integration into pressure sensors and transmitters.
• Wide Pressure Range — Available ranges from 100 kPa to 60 MPa for varied industrial measurement requirements.
• Corrosive Media Applications — Designed for demanding environments where wetted-material selection is essential.
The SDP-PC10HC is a piezoresistive silicon pressure sensor core featuring a Hastelloy C header and diaphragm for corrosive media and harsh industrial environments. Its compact Ø19 × 14 mm design supports OEM integration into pressure sensors and transmitters, with available pressure ranges from 100 kPa to 60 MPa.
- Hastelloy C header and diaphragm for corrosion-resistant pressure sensing
- Compact Ø19 × 14 mm package for OEM integration
- Available pressure ranges from 100 kPa to 60 MPa
- Designed for corrosive media and harsh environments
| Parameter | Specification |
|---|---|
| Model | SDP-PC10HC |
| Sensing technology | Piezoresistive silicon |
| Dimensions | Ø19 × 14 mm |
| Available pressure ranges | 100 kPa–60 MPa |
| Header material | Hastelloy C |
| Diaphragm material | Hastelloy C |
For corrosive-media applications, confirm the compatibility of all wetted materials with the specific medium, concentration and operating temperature before selection.
To request a quotation for SDP-PC10HC, please provide your required pressure range, measured medium, operating temperature and integration requirements. Pressure reference, excitation, output, accuracy and electrical connection should be confirmed for the selected configuration.
