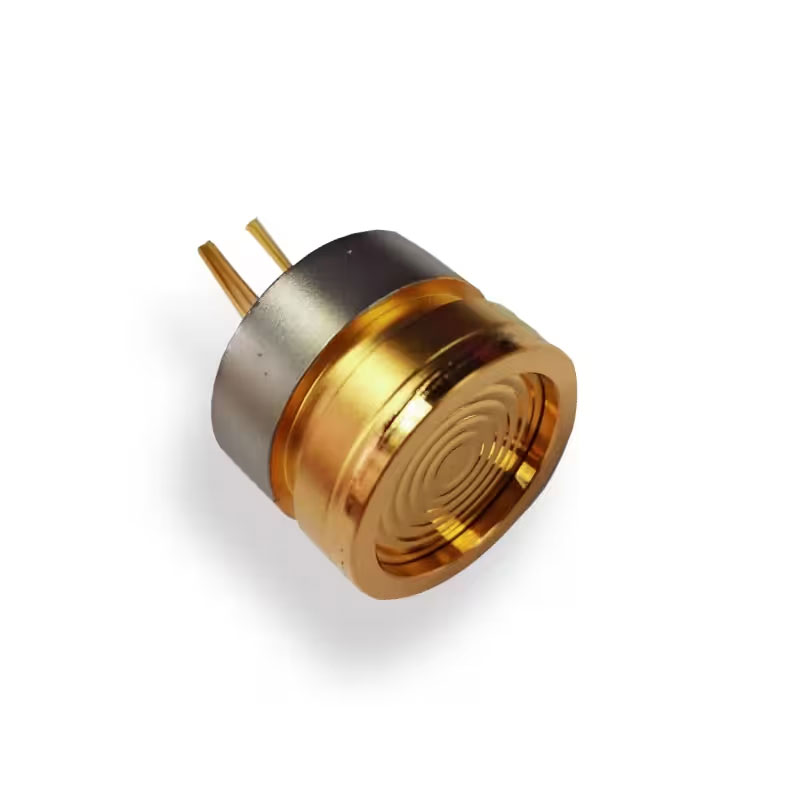

SDP-PC10AU Gold-Plated Piezoresistive Silicon Pressure Sensor Core
The SDP-PC10AU is a Ø19 mm piezoresistive silicon pressure sensor core designed for hydrogen pressure measurement. A gold-plated 316L stainless steel diaphragm helps reduce hydrogen permeation, while its silicone-oil-filled construction transfers pressure to the sensing element. With pressure ranges from 100 kPa to 40 MPa, it supports OEM integration into hydrogen pressure sensors and transmitters.
Features
• Gold-Plated Diaphragm — Helps reduce hydrogen permeation for hydrogen pressure measurement.
• Standard Ø19 mm Design — Compact Ø19 × 14 mm construction for OEM integration.
• 316L Stainless Steel — Gold-plated 316L diaphragm and 316L housing with welded sealing.
• Flexible Pressure Options — Gauge, absolute and sealed gauge pressure configurations.
• Wide Operating Temperature — Designed for operation from −40°C to +120°C.
• Fast Response — Response time of ≤1 ms to reach 90% of full scale.
The SDP-PC10AU is a piezoresistive silicon pressure sensor core for hydrogen measurement. Its gold-plated 316L diaphragm helps reduce hydrogen permeation. The silicone-oil-filled, welded construction supports OEM integration.
- Standard Ø19 × 14 mm package
- 316L stainless steel housing
- Gauge, absolute or sealed gauge pressure
- Constant-current or constant-voltage excitation
| Parameter | Specification |
|---|---|
| Pressure range | 100 kPa–40 MPa |
| Recommended excitation | 1.5 mA constant current / 10 V constant voltage |
| Input impedance | Current: 2–5 kΩ; voltage: 3–18 kΩ |
| Compensated temperature | Current: −10 to +70°C*; voltage: −20 to +85°C |
| Operating / storage temperature | −40 to +120°C / −40 to +125°C |
| Insulation resistance | ≥200 MΩ at 250 VDC |
| Response time | ≤1 ms (90% FS) |
| Vibration / shock | 20 g (20–5,000 Hz) / 100 g, 10 ms |
| Durability | 10⁶ pressure cycles |

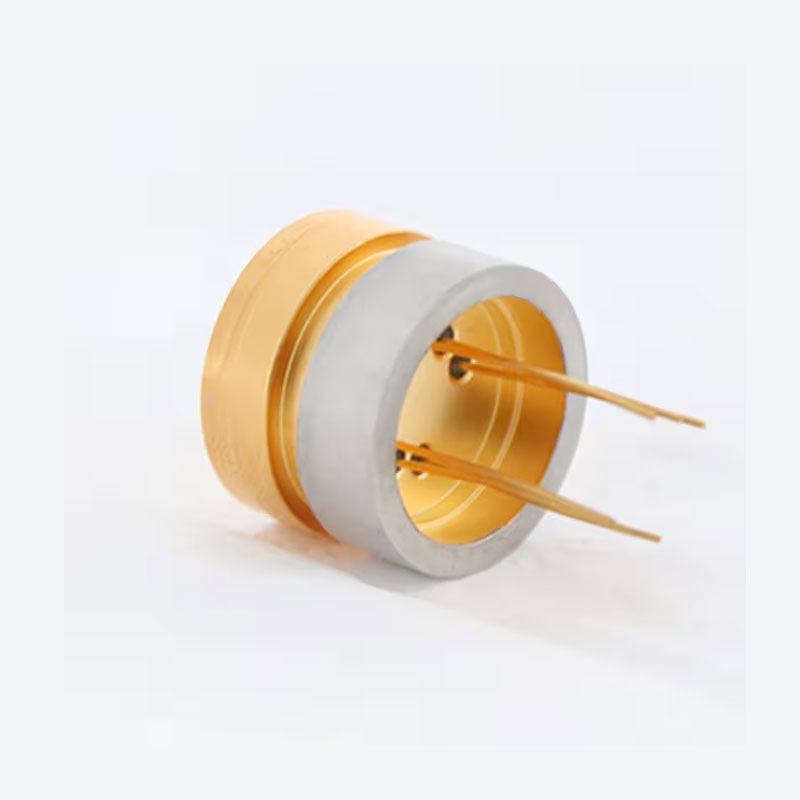

| Electrical connection | Gold-plated Kovar pins or flexible wires |
*Confirm compensation for the selected range before ordering.
Hydrogen pressure measurement, process control, hydraulic systems and valves.
Please specify your pressure range, pressure reference, excitation, electrical connection and operating conditions when requesting a quotation for SDP-PC10AU.
